Description

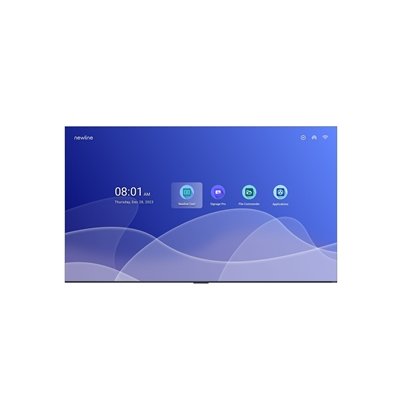

Newline STV+ 75″
NEXT-GEN DYNAMIC COMMUNICATION
The Newline STV+ enhances business presentations, classroom lessons, and digital signage with stunning 4K visuals, up to XDR 2000 nits brightness, and an ultra-high 7000:1 contrast ratio, all wrapped in a sleek, modern design. Available in a wide range of sizes from 43″ to 115″, it fits perfectly into any environment. Cast+ enables instant content sharing from any device, while seamless integration with Signage Pro software streamlines content management. Display Management Plus centralizes control of settings and updates across all screens.
GO BEYOND WITH CLICK2CAST!
Compatible with the Newline Click2Cast dongle, a hassle-free hardware solution for one click casting. Just a single button to initiate wireless screen casting effortlessly.
NEWLINE INTERACTIVE ECOSYSTEM
The Newline Interactive Ecosystem streamlines operations with seamless tools for content sharing, signage management, and display control, optimizing workflows
Specifications
MODEL
STV+ 75″
PANEL
Display Type Direct LED
Display Area 1650 x 928 mm
Display Ratio 16:9
Resolution 3840 x 2160, 4K UHD
Colours 1,07 Billion
Brightness 300 cd/m?
Contrast Ratio 5000:1
Response Time 6,5 ms
Viewing Angle 178degrees
Operating Time 24 hrs / 7 days
Refresh Rate 60 Hz
Display Lifetime 50 000 hours
Haze 2%
POWER CONSUMPTION
Standard Mode 111 W
Standby Mode 0,5 W
SPEAKERS
Speakers Position Back
Speakers Max. Power 2 x 15 W
Subwoofer no
Sound System 2.0
SMART SYSTEM
CPU 4 x A73 2,20 GHz, 4 x A53 2,20 GHz
GPU Arm Mail-G52
RAM 4 GB
Storage 16 GB
Operating System Android 14
Wi-Fi 5
Bluetooth 5.0
PORTS I/O
Rear 1 x USB Type A 3.0, 1 x USB Type A 2.0, 3 x HDMI in 2.1 with HDCP 2.2 (4K@30 Hz), 1 x Audio Line Out, 1 x SPDIF Out, 1 x LAN In (RJ45), 1 x RS232, 1 x AV In
DIMENSIONS / WEIGHT / STORAGE
Net Weight (Kg) 23.1
Gross Weight (Kg) 33.2
Outline Dim. (mm) 1668 x 956 x 88
Packaging Dim. (mm) 1840 x 190 x 1103
Operating/ Storage Temperature 0?C – 40?C /-20?C – 60?C
Operating/ Storage Humidity 10% – 90% / 20% – 80% (non-condensing)
VESA (mm) 400 x 300
EXTRA FEATURES
Wake-on-LAN Yes
Wake-on-WiFi Yes
Firmware Update Via OTA
HDMI EDID 1.4 and 2.0
HDMI Arc HDMI 2.1 Support HDMI ARC/eARC
Hotspot 2.4 GHz and 5.0 GHz
Failover YEs
NEWLINE COMPATIBILITY
Software Ecosystem Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+ (Available in App Store)
Accessories Click2Cast
